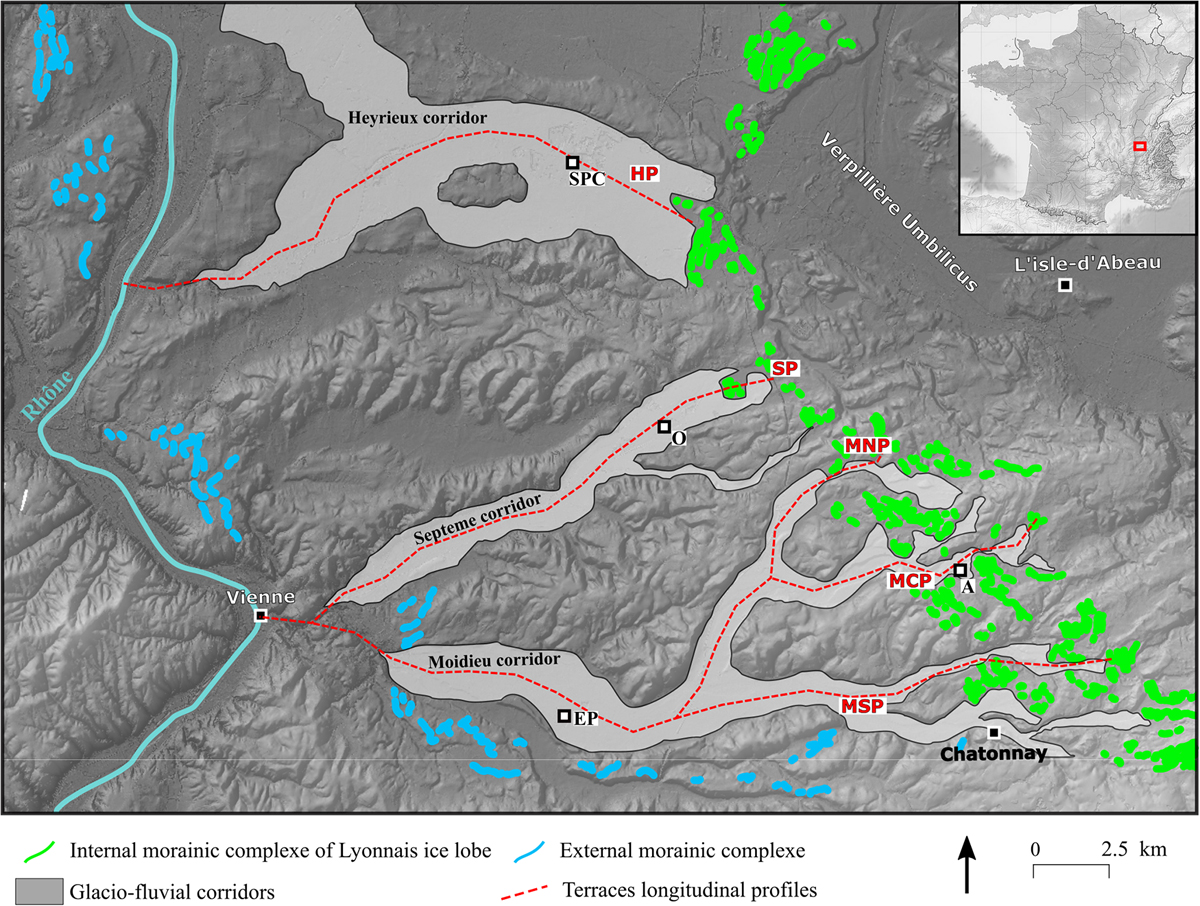

Map of the external (Riss) and internal (Würm) moraine complexes of the Lyonnais ice lobe including the three studied corridors: the Moidieux, Septeme and Heyrieux corridors. The squares with black borders show the location of the studied gravel pits. A: Artas gravel pit; EP: Eyzin-Pinet gravel pit; SPC: St Pierre-de-Chandieu gravel pit; O: Oytier gravel pit. The longitudinal profiles of the terraces shown in Figure 5 are indicated by red dotted lines. MSP: Moidieu south profile; MCP: Moidieu central profile; MNP: Moidieu north profile; SP: Septeme profile; HP: Heyrieux profile.

Carte du complexe des moraines internes et externes du lobe lyonnais incluant les trois couloirs étudiés (Moidieu, Septeme et Heyrieux). Les carrés à bordures noirs indiquent les positions des carrières étudiées. A : Carrière d’Artas ; EP : Carrière d’Eyzin-Pinet ; SPC : Carrière de St Pierre-de-Chandieu ; O : Carrière de Oytier. Les positions des profiles longitudinaux des terrasses données en la figure 5 sont indiquées par les lignes rouges pointillées. MSP : Profil de Moidieu sud ; MCP : Profil de Moidieu centre ; MNP : Profil de Moidieu nord ; SP : Profile de Septeme ; HP : Profil d’Heyrieux.
