Fig. 6


Download original image

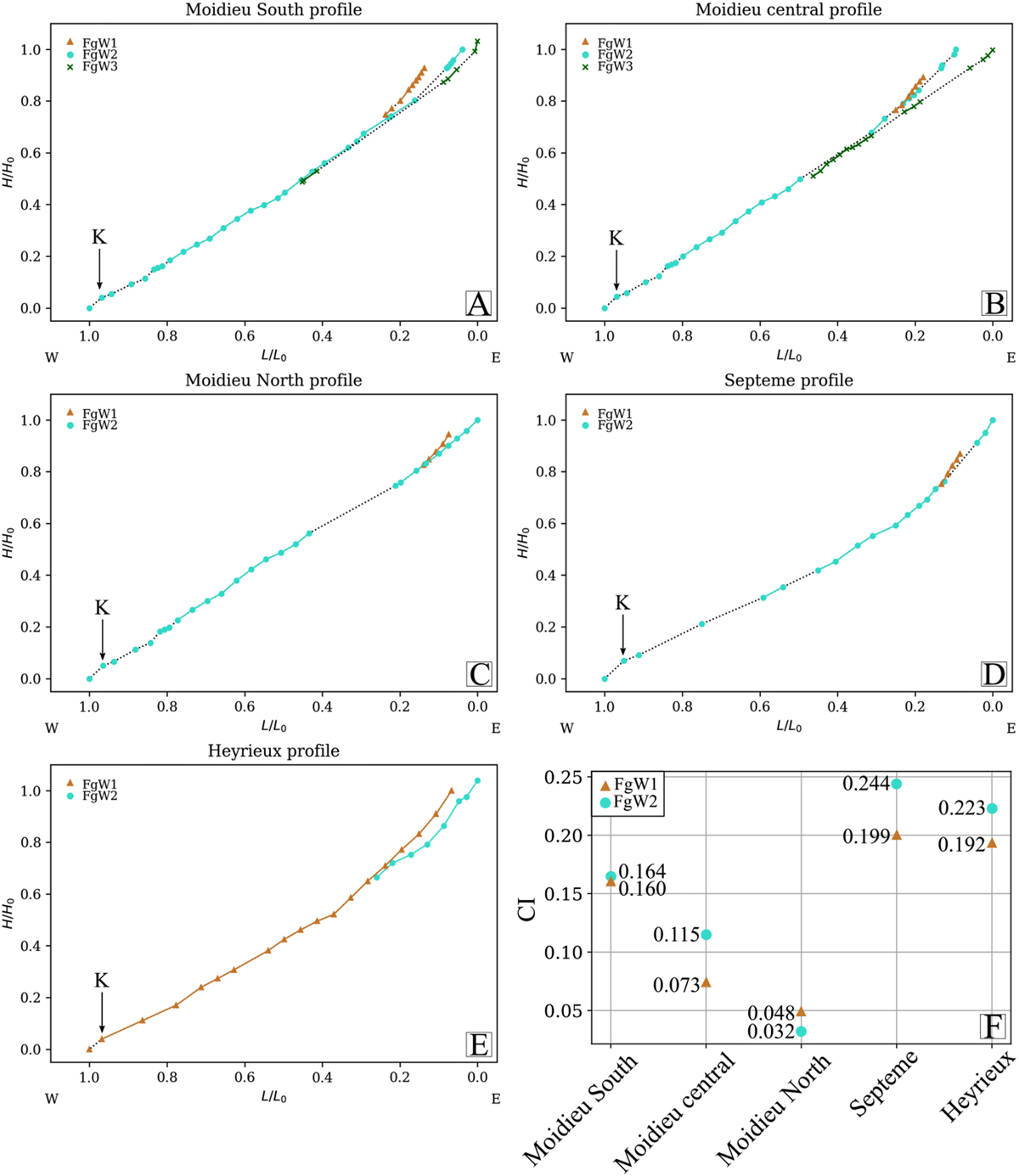

Dimensionless curves of the longitudinal profiles of the terraces and the CI values for the FgW1 and FgW2 terraces for the three studied glaciofluvial corridors. The full line connects the points taken at the site of each terrace, and each terrace is linked to the others by dotted lines. The triangles, circles and cross represent the points of the FgW1, FgW2 and FgW3 terraces, respectively. K: Downstream knickpoint position. A: Longitudinal profile for the South Moidieu branch. B: Longitudinal profile of the Central Moidieu branch. C: Longitudinal profile of the North Moidieu branch. D: Longitudinal profile of the Septeme corridor. E: Longitudinal profile of the Heyrieux corridor. F: CI values for the FgW1 and FgW2 terraces in all corridors. The location of the profiles is given in Figure 2.

Profiles longitudinaux normalisés et valeurs des indices de concavité des terrasses FgW1 et FgW2 des trois couloirs fluvio-glaciaire. Les lignes pleines relient les points localisés sur une terrasses, les lignes pointillées relient les points entre les terrasses. Les triangles, les ronds et les croix représentent respectivement les points des terrasses FgW1, FgW2 et FgW3. K : Localisation des points de rupture. A : Profile longitudinal de Moidieu Sud. B : Profile longitudinal de Moidieu centre. C : Profile longitudinal de Moidieu Nord. D : Profile longitudinal de Septeme. E : Profile longitudinal de Heyrieux. F : Valeurs des IC des terrasses FgW1 et FgW2 des trois couloirs. La localisation des profiles est donné par la figure 2.
