Fig. 7


Download original image

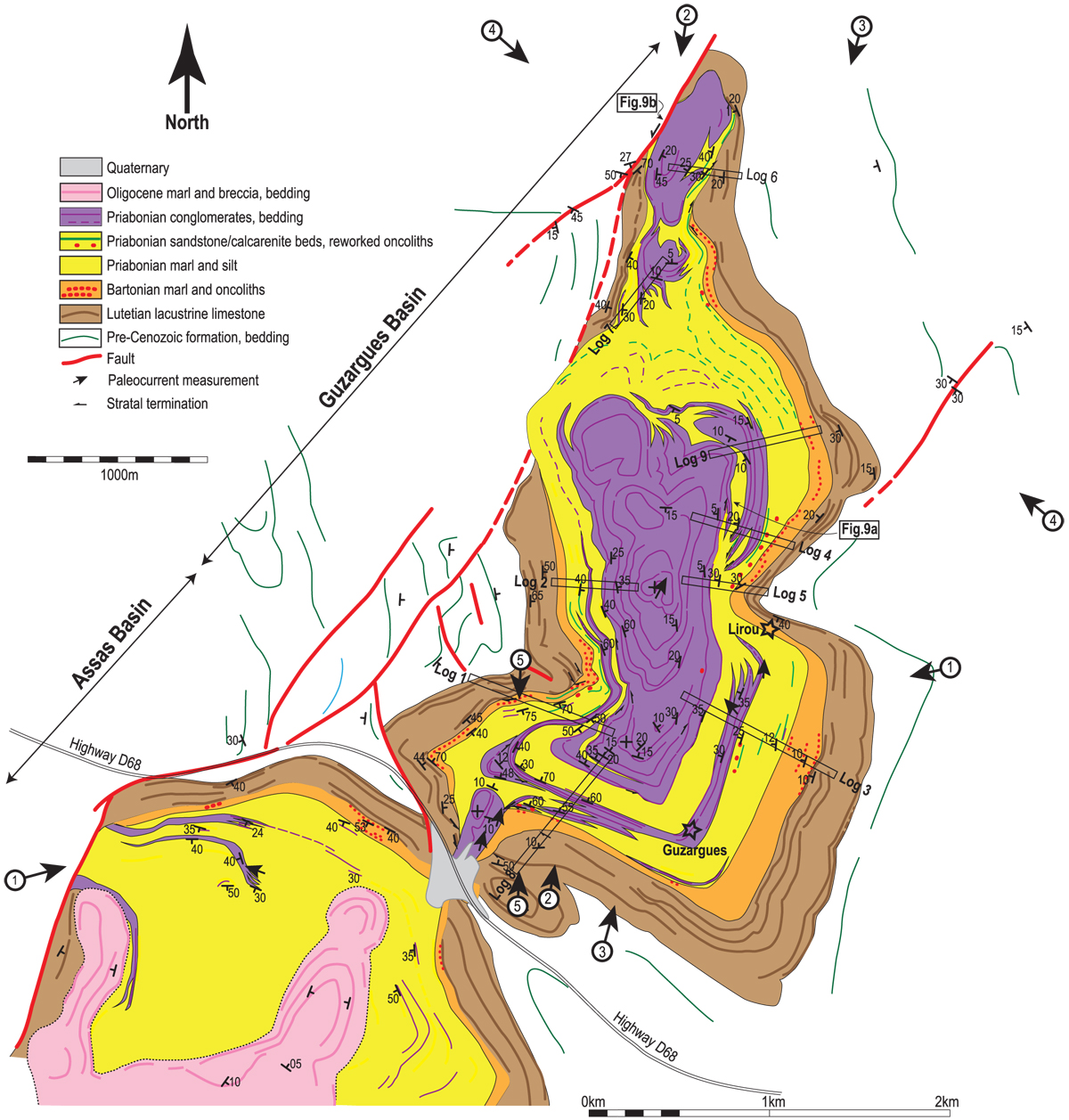

Detailed geological and structural map of the Guzargues basin (north of Highway D68, while Assas sub-basin is located south of the highway). Location of the sedimentological logs 1 to 9 reported in Figure 6 is indicated by fine black rectangles. Position of the structural cross-sections extremities (Figs. 8 and 9) is given by black arrows.
