Fig. 20


Download original image

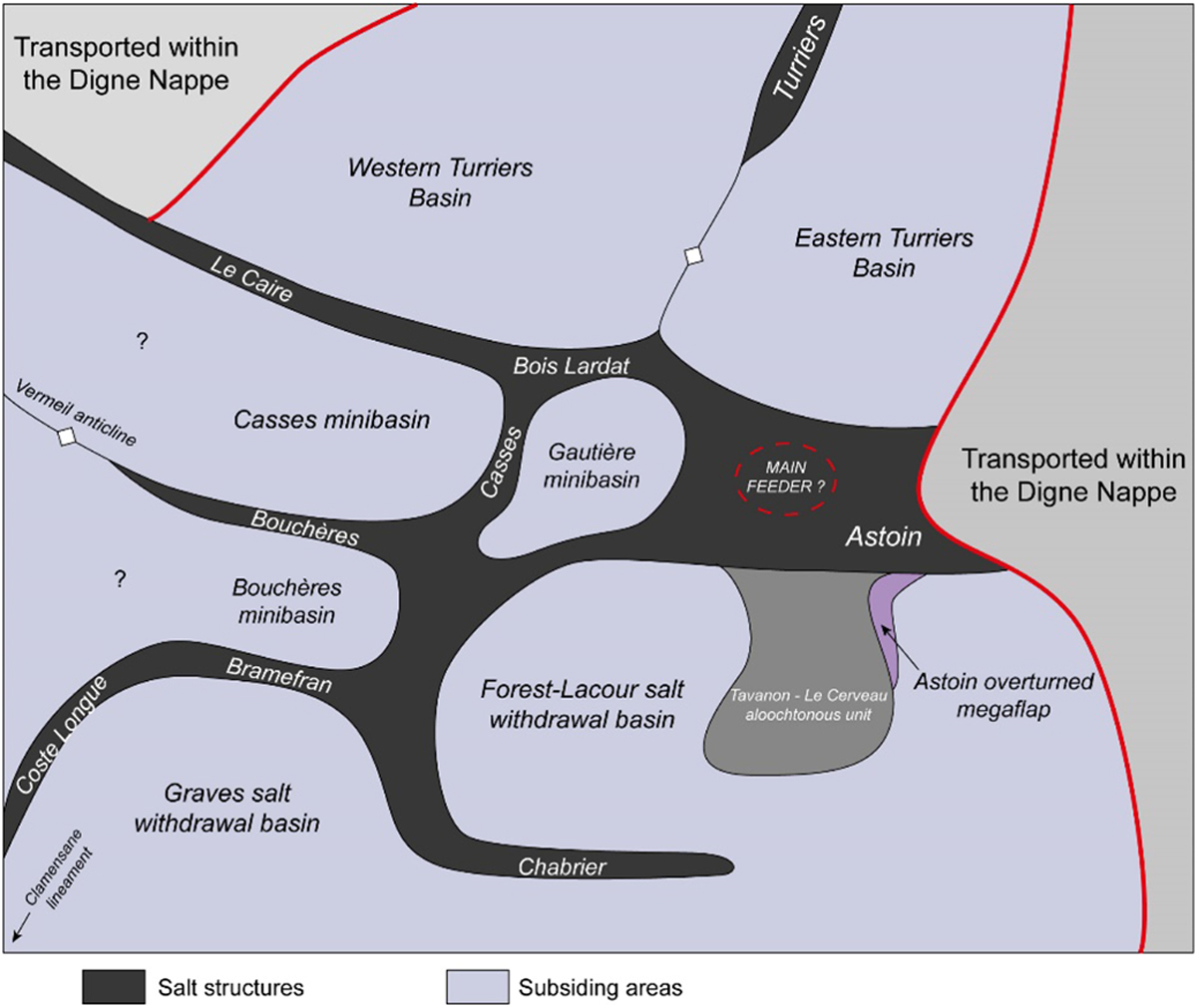

Map view of the Astoin diapiric complex with the salt structures and the associated rim synclines in their palinspastic position during the Jurassic. The schema is not to scale and its aim is to locate the different structures in their original position.
