Fig. 6


Download original image

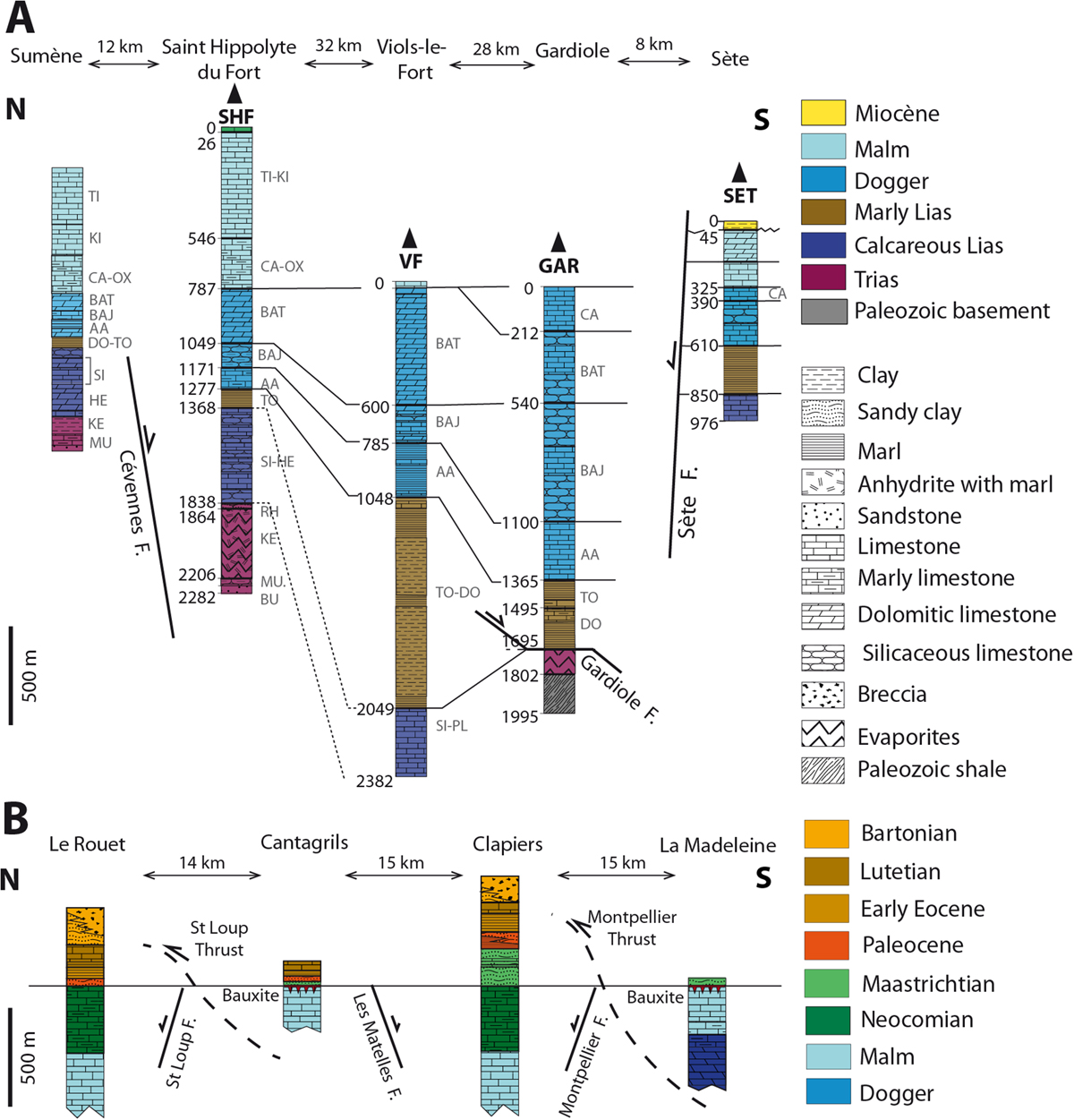

A. Correlation diagram of selected boreholes along a N–S transect (location on Fig. 2) and providing evidence for Jurassic (“Tethyan”) fault-controlled subsidence. Note that the northernmost section (Sumène) is measured in the field. B. Correlation diagram of stratigraphic sections measured in the field (location on Fig. 2) and showing evidence of mid-Cretaceous (“Durancian”) faulting. BU: Buntsandstein; MU: Muschelkalk; KE: Keuper; RH: Rhetian; HE: Hettangian; SI: Sinemurian; PL: Pleinsbachien; DO: Domerian; TO: Toarcian; BAJ: Bajocian; BAT: Bathonian; CA: Callovian; OX: Oxfordian; KI: Kimmeridgian; TI: Tithonian; BE: Berriasian; VA: Valanginian; MA: Maastrichtian.
