Fig. 2

Download original image

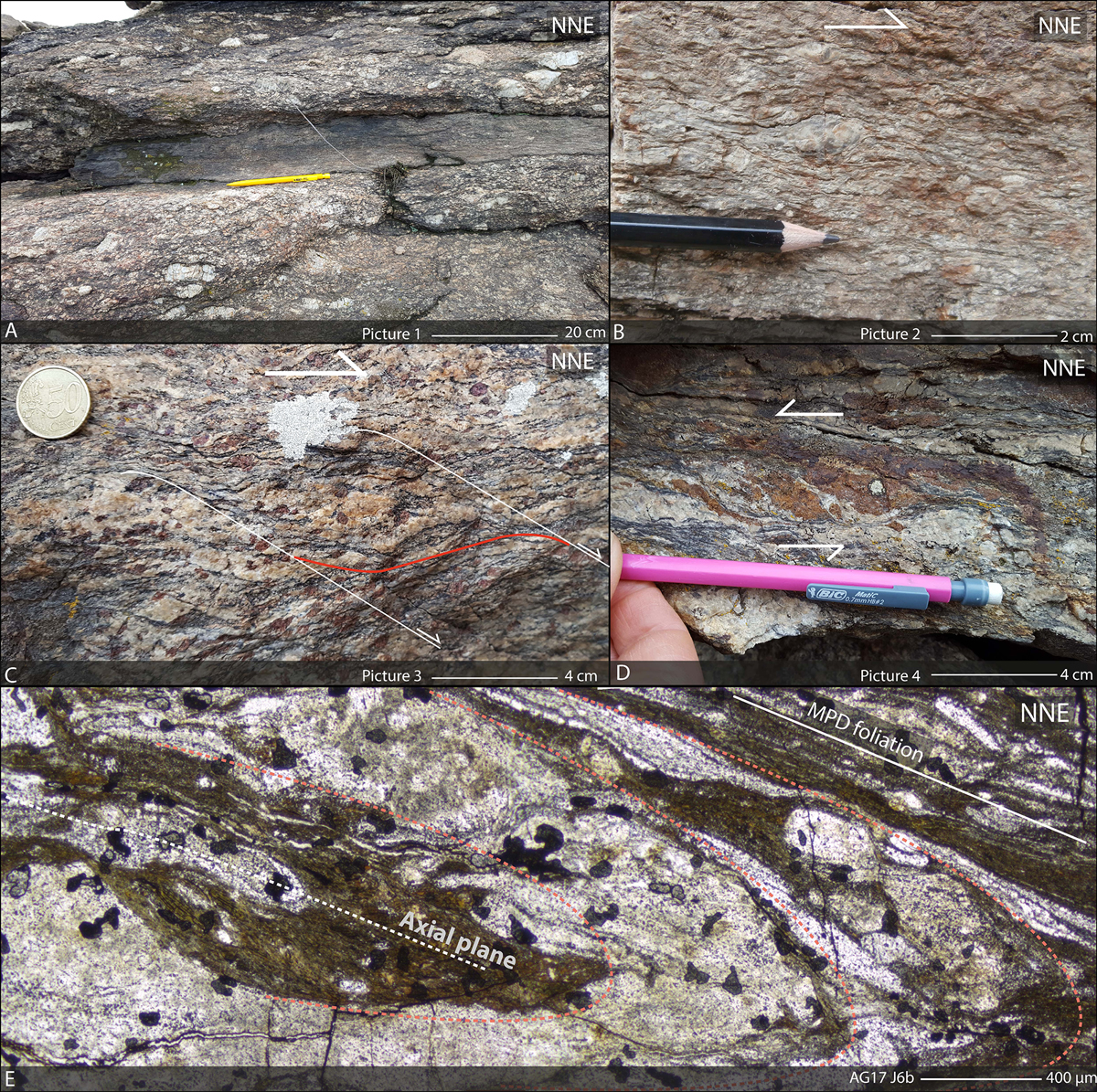

Pictures A, B, C and D refers to the Figure 1 where the location of the photos is shown (orange circle). (A) MPD flat-lying mylonitic shear zone in orthogneiss (east of Mas Chiffre-Rnes). (B, C and D) Kinematic indicators of the MPD (St-Martin/Cuxous area). (E) Thin-sections showing the folding of the relictual fabric (RF) transposed onto the MPD foliation.
