Fig. 7
Download original image

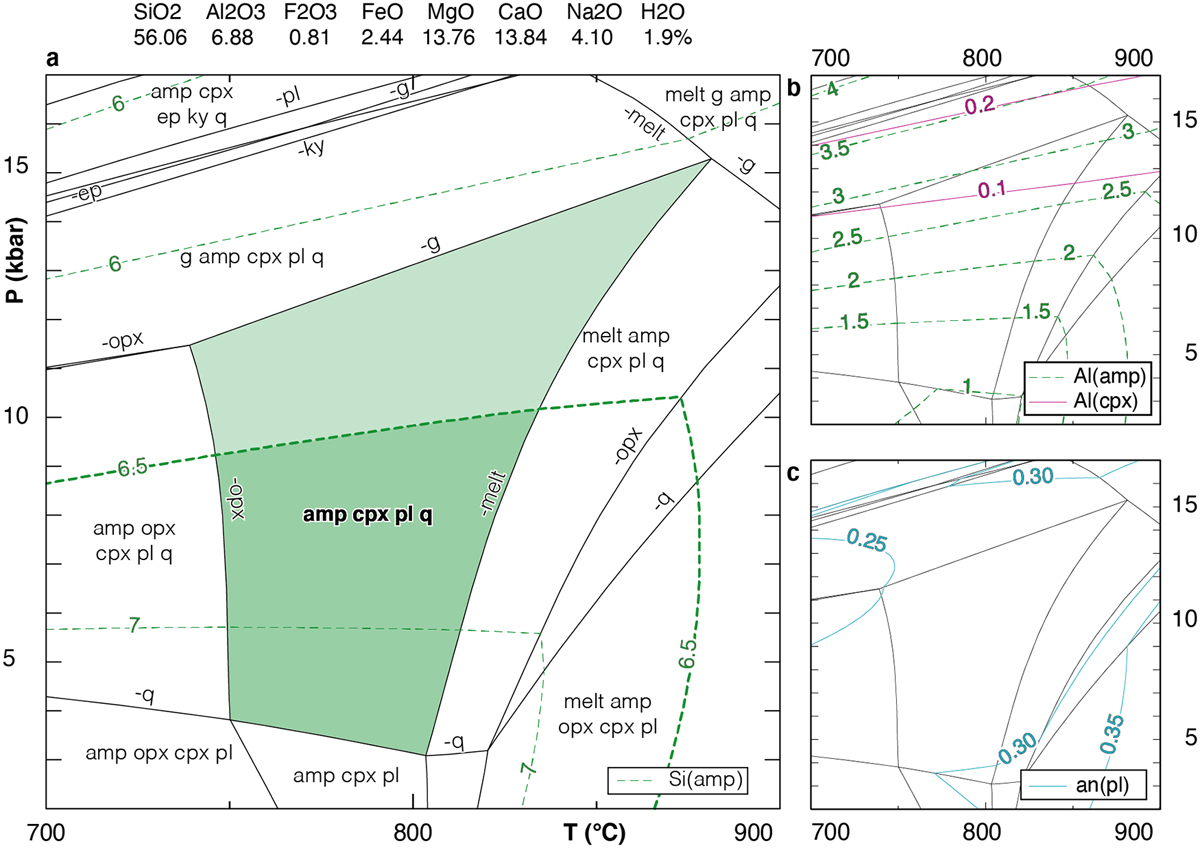

P–T pseudosection and selected isopleths calculated in the NCFMASHO system for a SEM-measured bulk composition of a part of the amphibole-clinopyroxene-plagioclase-quartz symplectite from the matrix. The diagram is contoured with Si content isopleths for amphibole (a), Al content isopleths for amphibole and clinopyroxene (b) and compositional isopleths for the anorthite content in plagioclase (c).
