Fig. 15


Download original image

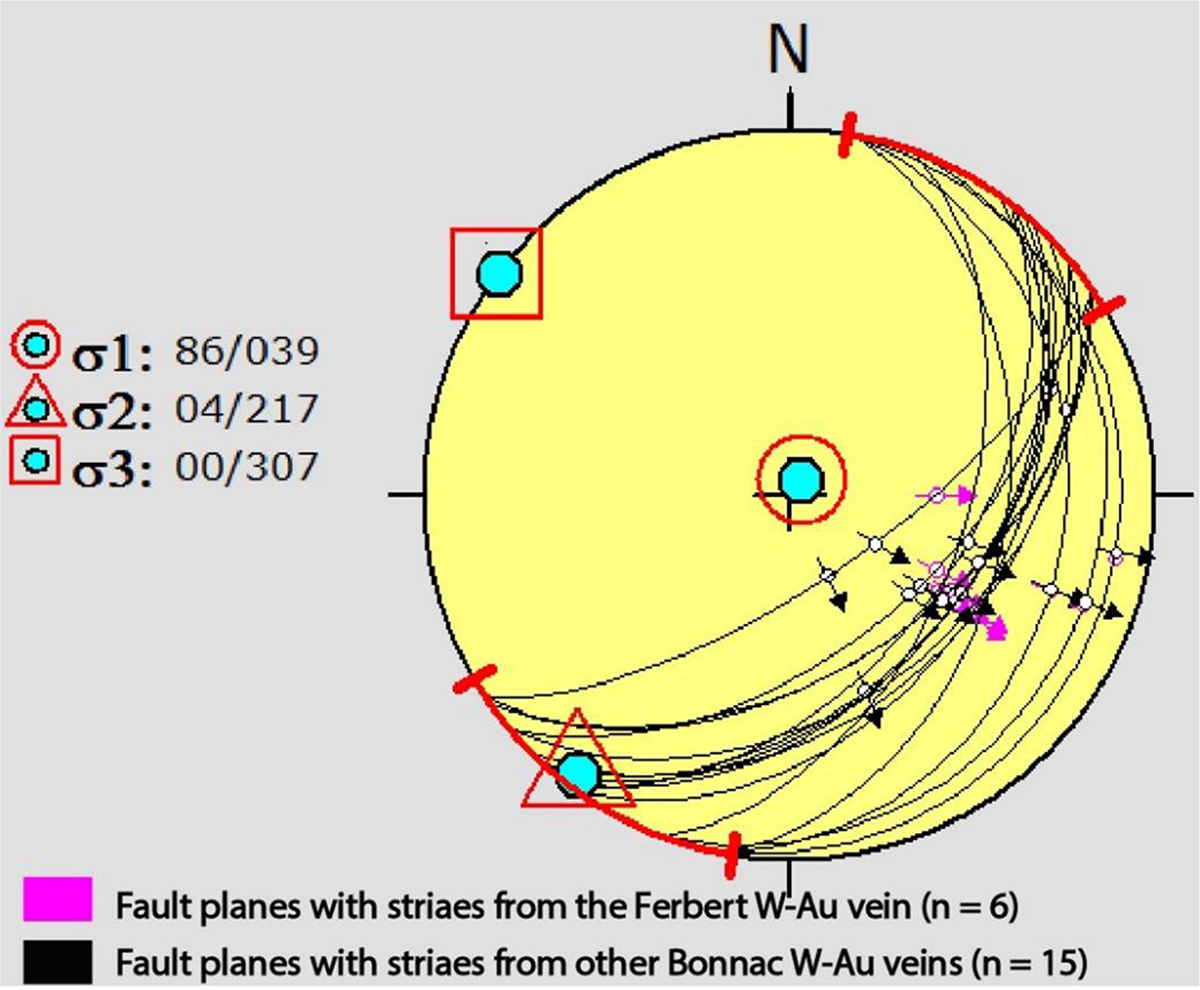

Stereographic projection of faults planes contemporaneous of mineralized quartz veins with their kinematics and associated striae. σ1, σ2, σ3: orientation of principal stress axe calculated from fault-slip data inversion using WinTensor software in Schmidt’s lower hemisphere equal-area projection (Delvaux and Sperner, 2003).
