Fig. 20


Download original image

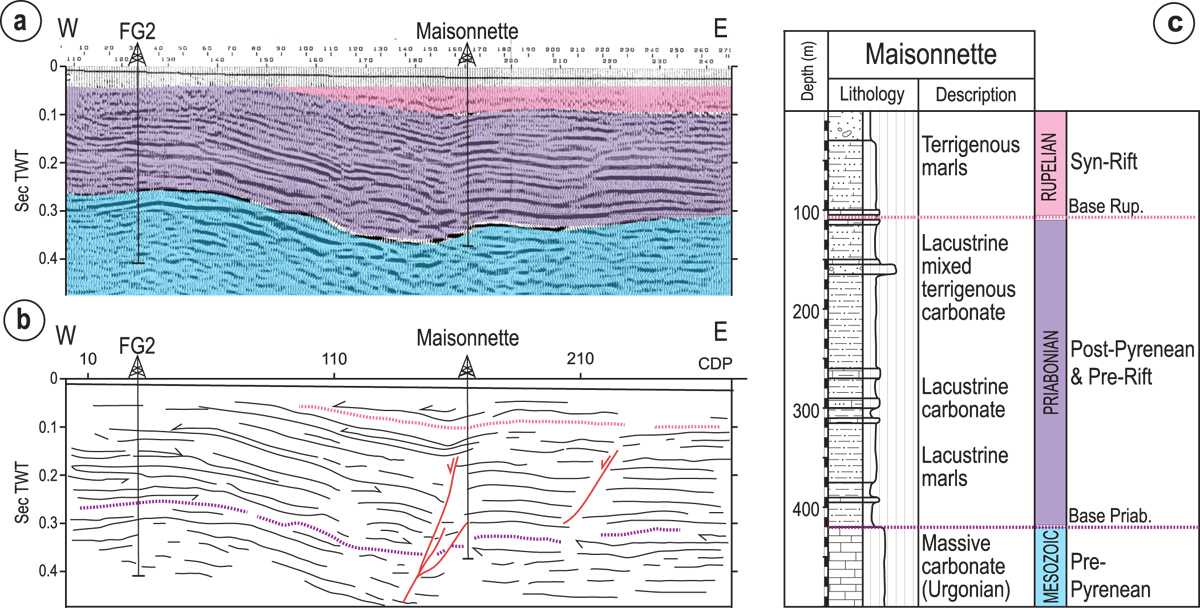

Seismic reflection profile and corresponding line drawing in the Gardon-Saint-Chaptes basin showing evidence for syn-depositional (Priabonian) extensional faulting sealed by the Rupelian sequence. Maisonnette borehole allows to interpret and to date the sequence. Modified after (Baral, 2018). Location in Figures 2 and 21.
