Anatomy and evolution of the Astoin diapiric complex, sub-Alpine fold-and-thrust belt (France)

Open Access

Fig. 7

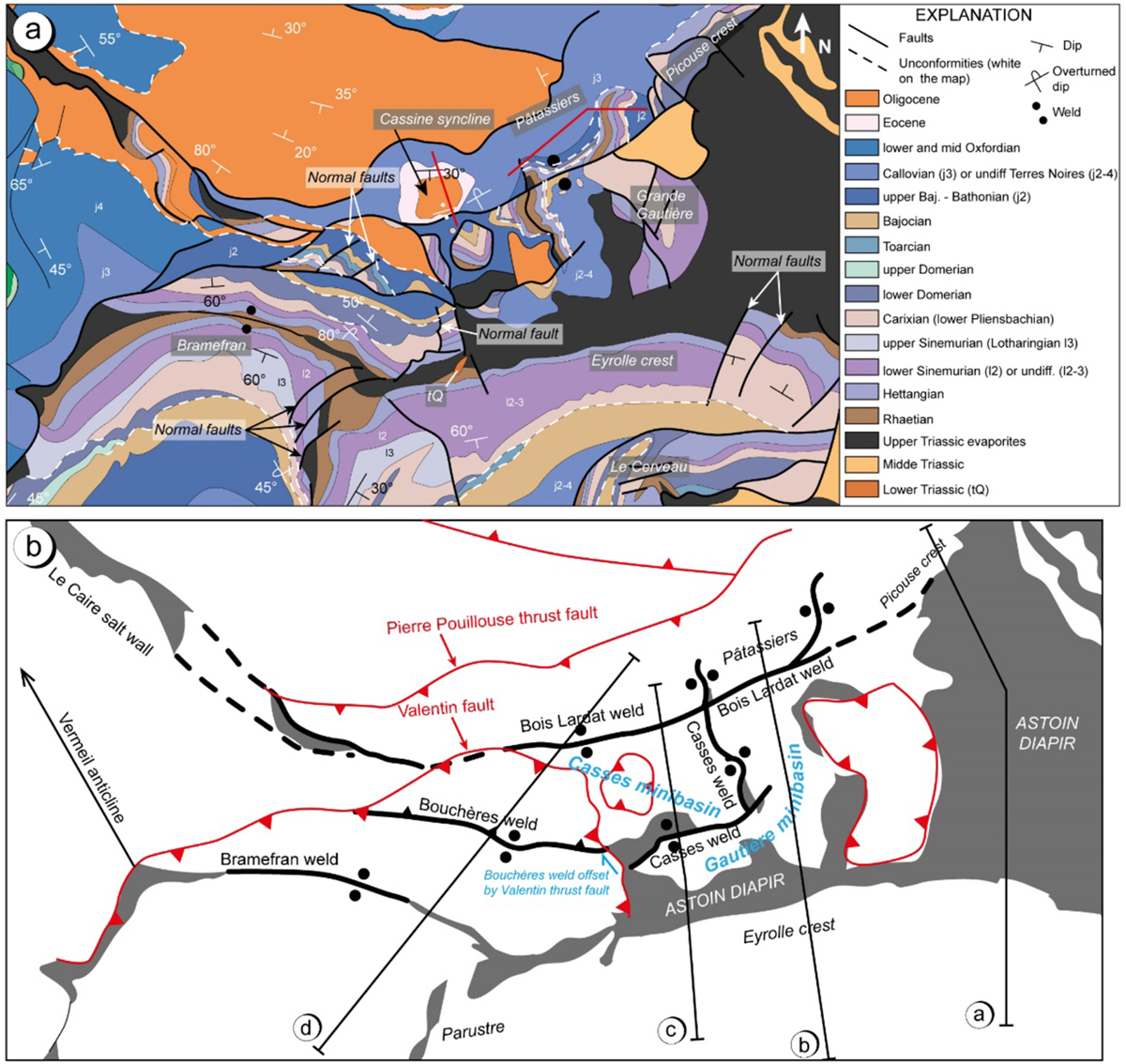

(a) Geological map of the Picouse–Valentin sector (See location in Fig. 4). (b) Structural sketch of the Picouse–Valentin sector with the main structural relationships (faults and welds). Black lines correspond to the locations of cross-sections in Figure 18.
