Fig. 5


Download original image

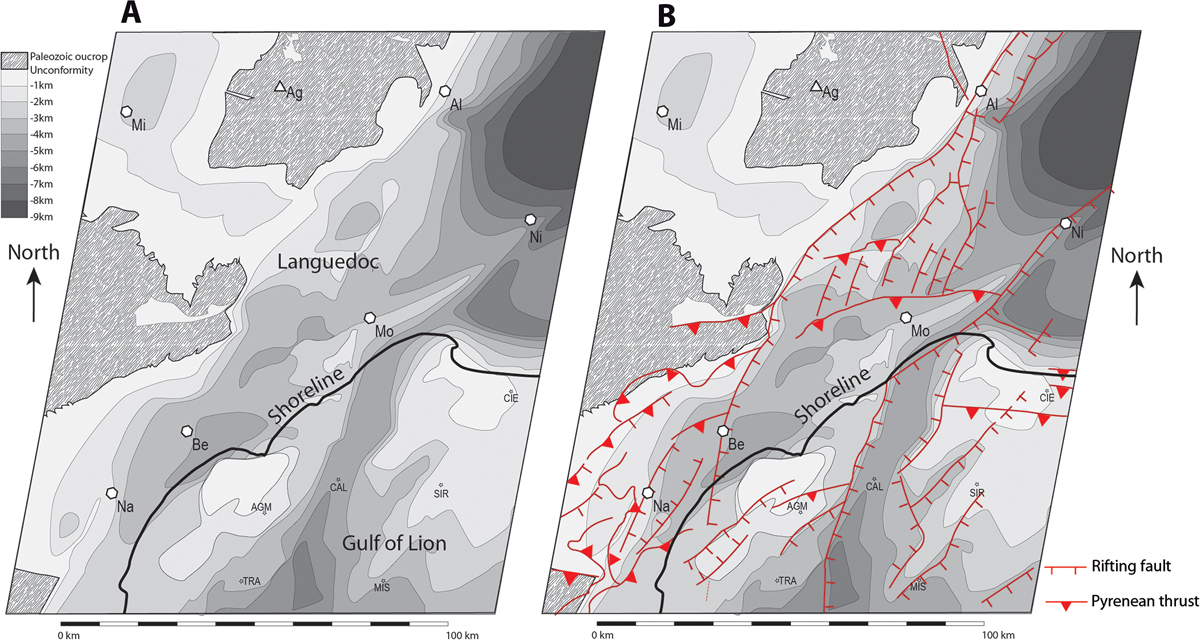

A. Isobath map of the top of the Paleozoic basement, compiled from various sources (see text for references). B. Same map with superimposed structural framework of Séranne et al. (1995). Main cities: Al: Alès; Be: Béziers; Mi: Millau; Mo: Montpellier; Na: Narbonne; Ni: Nîmes; Ag: Aigoual summit (1567 m). Offsore boreholes: AGM: Agde Maritime; CAL: Calmar; CIC: Cicindelle; SIR: Sirocco. Location of this map on Figure 1.
