Fig. 9


Download original image

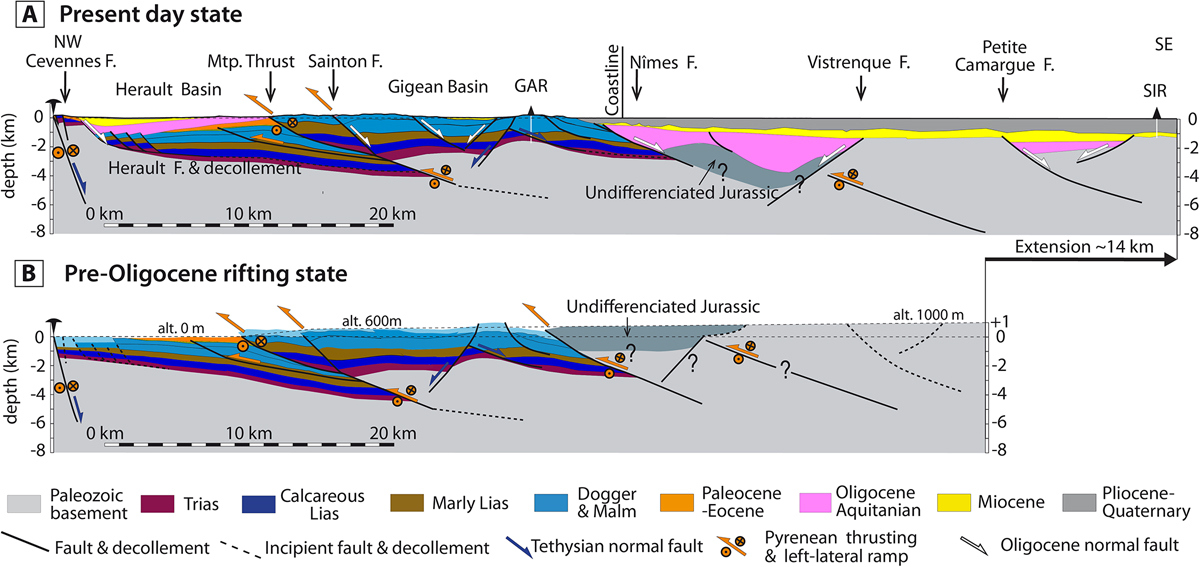

Geological cross-section oriented parallel to the extension direction, in order to show the rifting structures (note identical vertical and horizontal scales). See location on Figure 2. This section is primarily derived from the seismic transect and then restored section in a post-Pyrenean state. See text for justification of topography.
