Fig. 1

Download original image

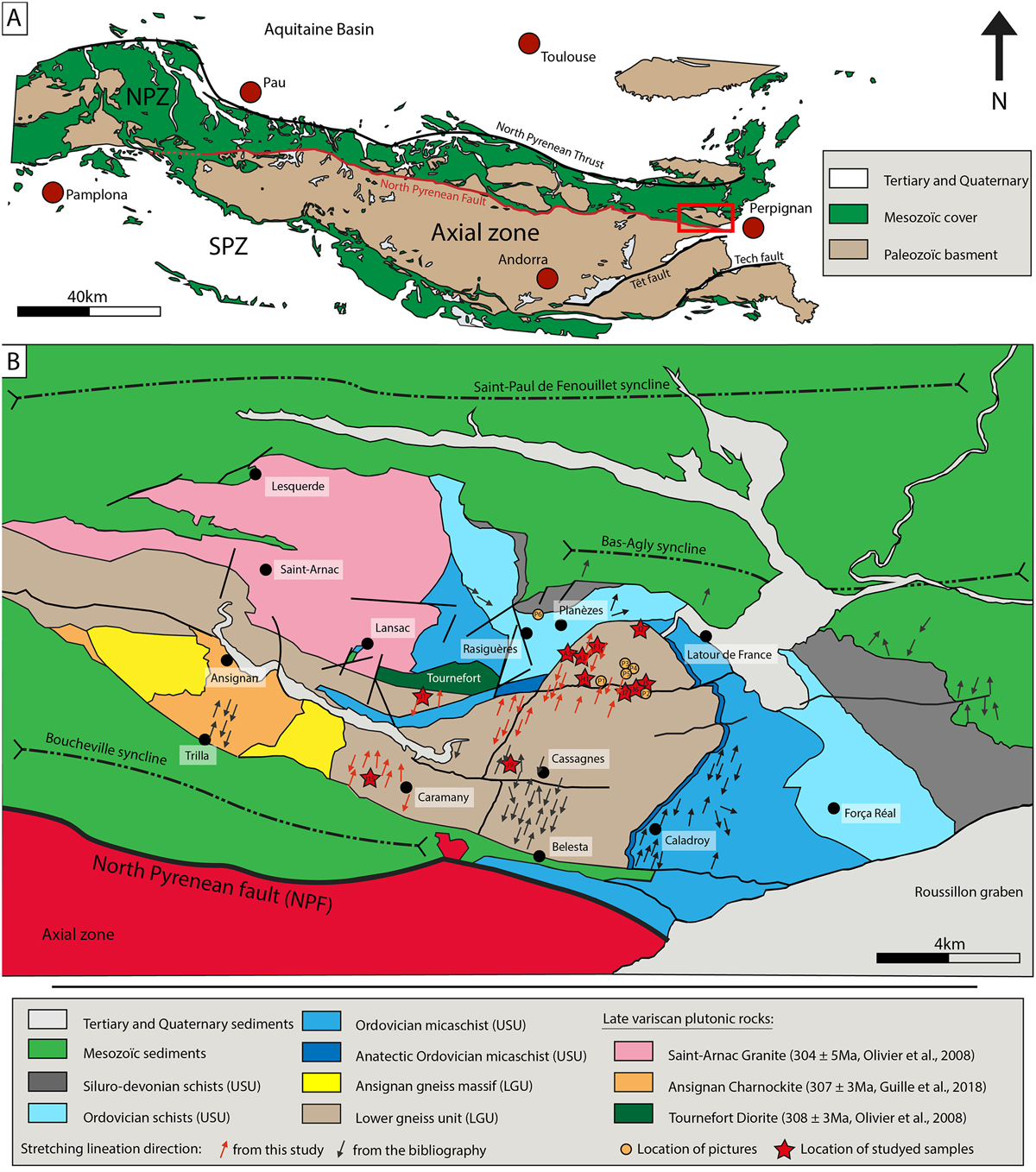

(A) Simplified geological map of the North Pyrenean Zone (NPZ) and location of the Agly Massif in the Pyrenean belt. (B) Geological map (modified from Fonteilles et al., 1993 and Berger et al., 1993) showing the location of the Agly Variscan Massif between the Saint Paul de Fenouillet and Bas Agly sedimentary basins to the north and the Boucheville sedimentary basin to the south. The North Pyrenean Fault (NPF) separates the Northern Pyrenean Zone from the Axial Zone. Stretching lineations from Delay (1989), Bouhallier et al. (1991), Choukroune et al., (1990), Vauchez et al., (2013) and this study.
