Fig. 17
Download original image

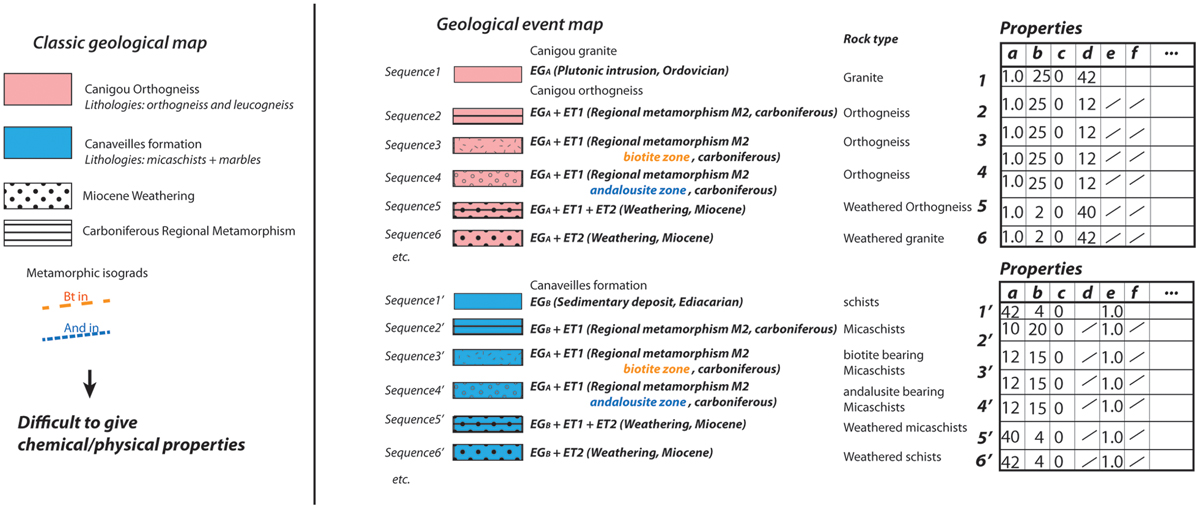

Example of the legend architecture of a traditional geological map, with geological units and hachures that contain metamorphic and weathering informations, and the legend architecture of a geological event map, with event sequences. A rock unit is characterized by an event sequence. Physical and chemical properties are assigned to this rock unit.
