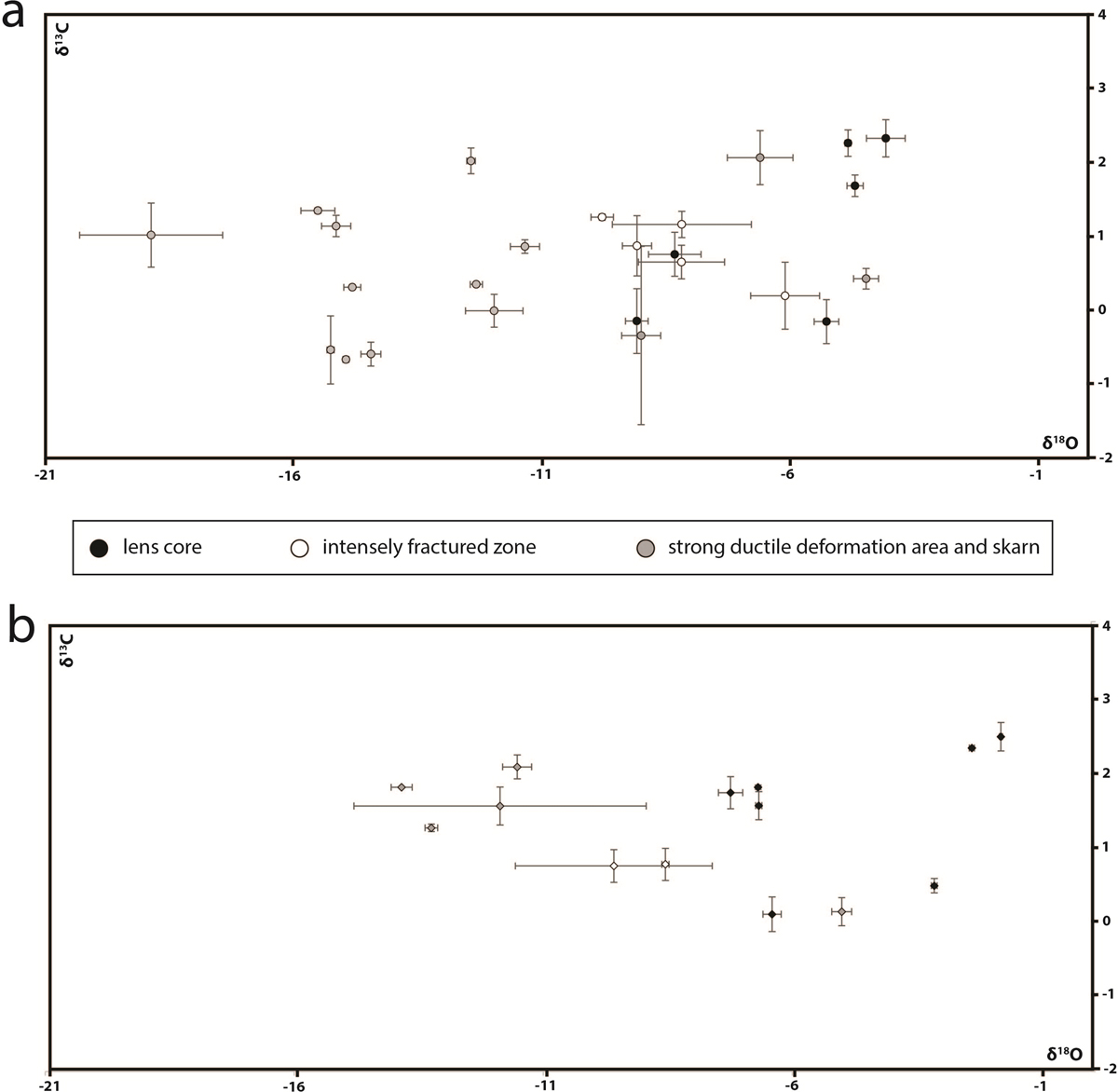

Carbon isotopic signature versus oxygen isotopic signature in quarry C23 (a) and quarry C24 (b). Blue colour corresponds to the core of the lenses, yellow colour corresponds to highly fractures areas and red colour to folded/thinned zones and skarns.
