Fig. 11


Download original image

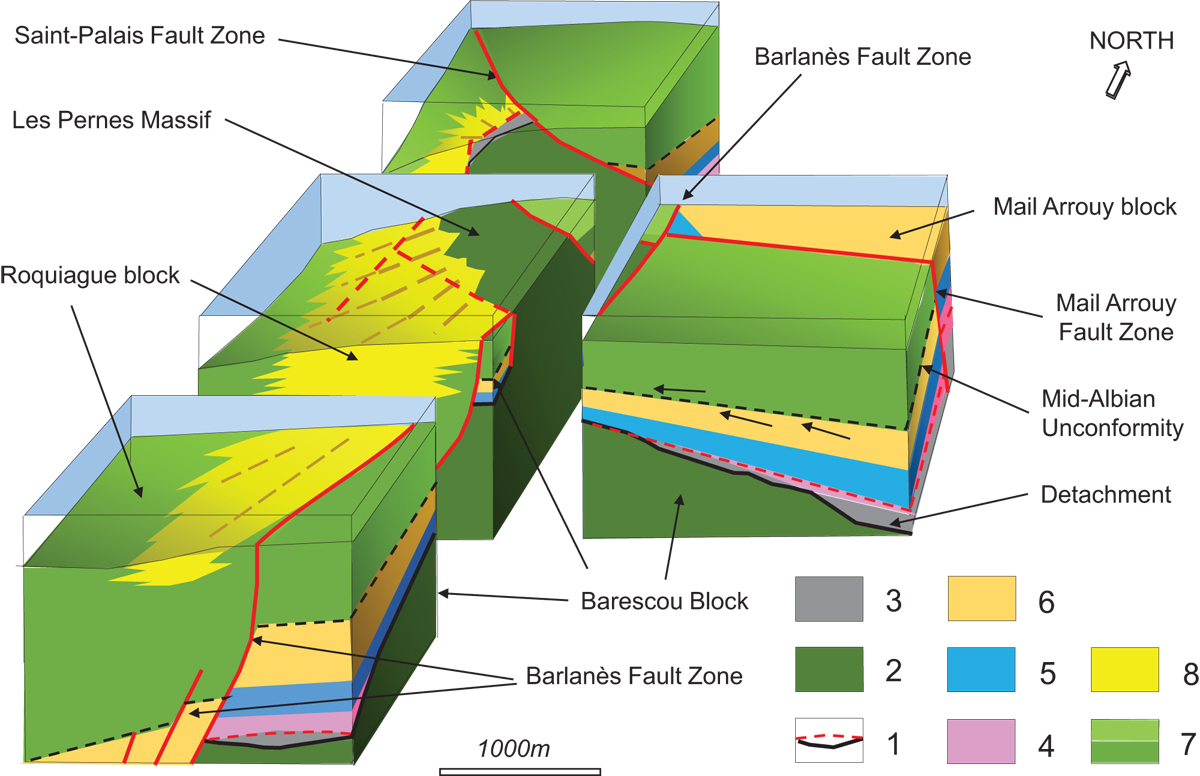

Schematic 3D structure of the Urdach-Les Pernes area towards the Uppermost Albian. 1: Detachment fault; 2: lherzolite; 3: undifferentiated Palaeozoic; 4: Triassic; 5: Jurassic; 6: Early Cretaceous; 7: Albian Flysch Noir; 8: Urdach breccias (Late Albian-Earliest Cenomanian).
