Fig. 11
Download original image

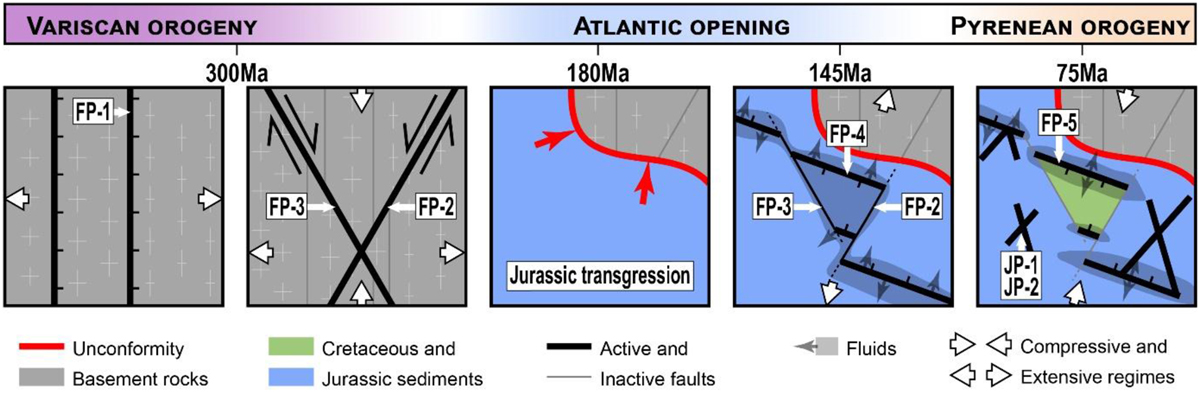

Schematic diagrams of Vendée Coast brittle structure from the tectonics of the Late Variscan Orogeny (FP-1, FP-2, and FP-3), the Early Jurassic transgression covering the Variscan basement, the Atlantic Opening (FP-4 and partial reactivation of FP-2 and FP-3) and the Pyrenean Orogeny (FP-5, JP-1, JP-2, and fold). See Table 1 for brittle structure nomenclature.
