Fig. 11
Download original image

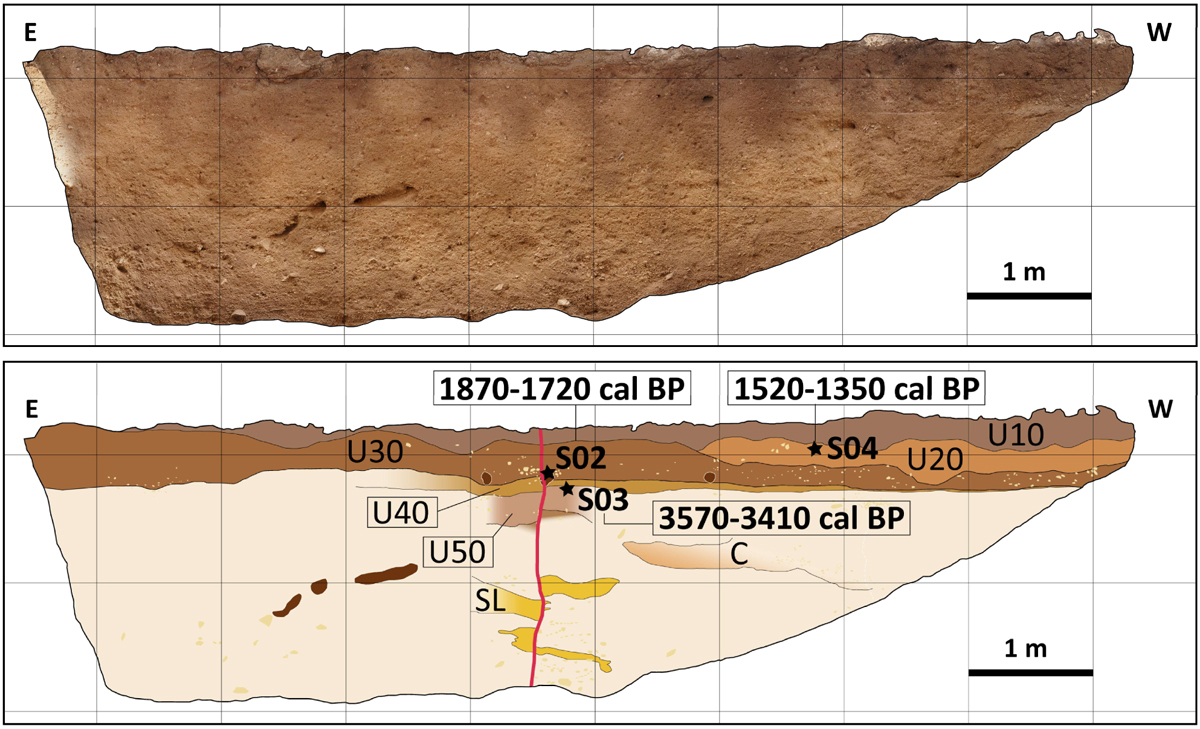

Photomosaic and interpreted log of Stubborn Beetle paleoseismological trench . Caption : U10 : Soil, U20 : Silty unit with few small pebbles. U30 : Fine gravel unit with silt matrix. U40 : Sandy silt unit, U50 : Gravelly unit with sandy matrix. SL : Offset sandy lenses. C : Chanel deposit. Red line materialize the rupture. Dark brown patches are burrows.
