Fig. 8
Download original image

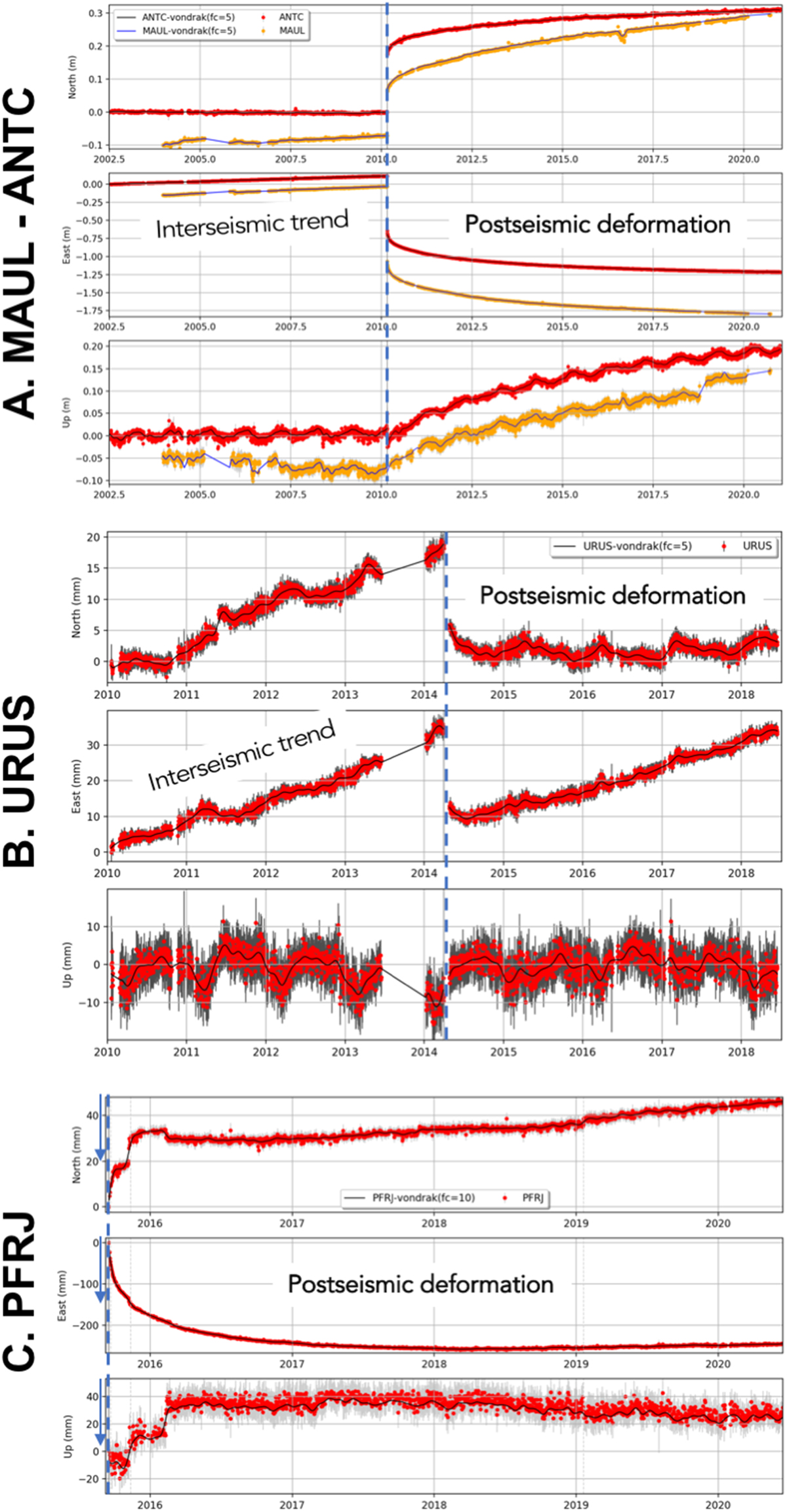

Surface deformation associated with seismic cycle. North-East-Up components of time series from our processing at different stations: (A) ANTC (red) and MAUL (orange), in Chile, located at the foothill of the Andes in the region affected by the 2010 Maule earthquake; (B) URUS in Bolivia, in far field of the 2014 Iquique earthquake; (C) PFRJ in Chile, located on the coastline in near field of the 2015 Illapel earthquake. For (C), since we show only the postseismic period, the blue arrows depict the direction of the coseismic displacements. All time series are represented relative to stable South America. All time series are highlighted by Vondrak filters, which cutoff frequencies in cycle per year are indicated in figures insets (dark full lines). Location of stations are depicted in Figure 1.
