Fig. 1
Download original image

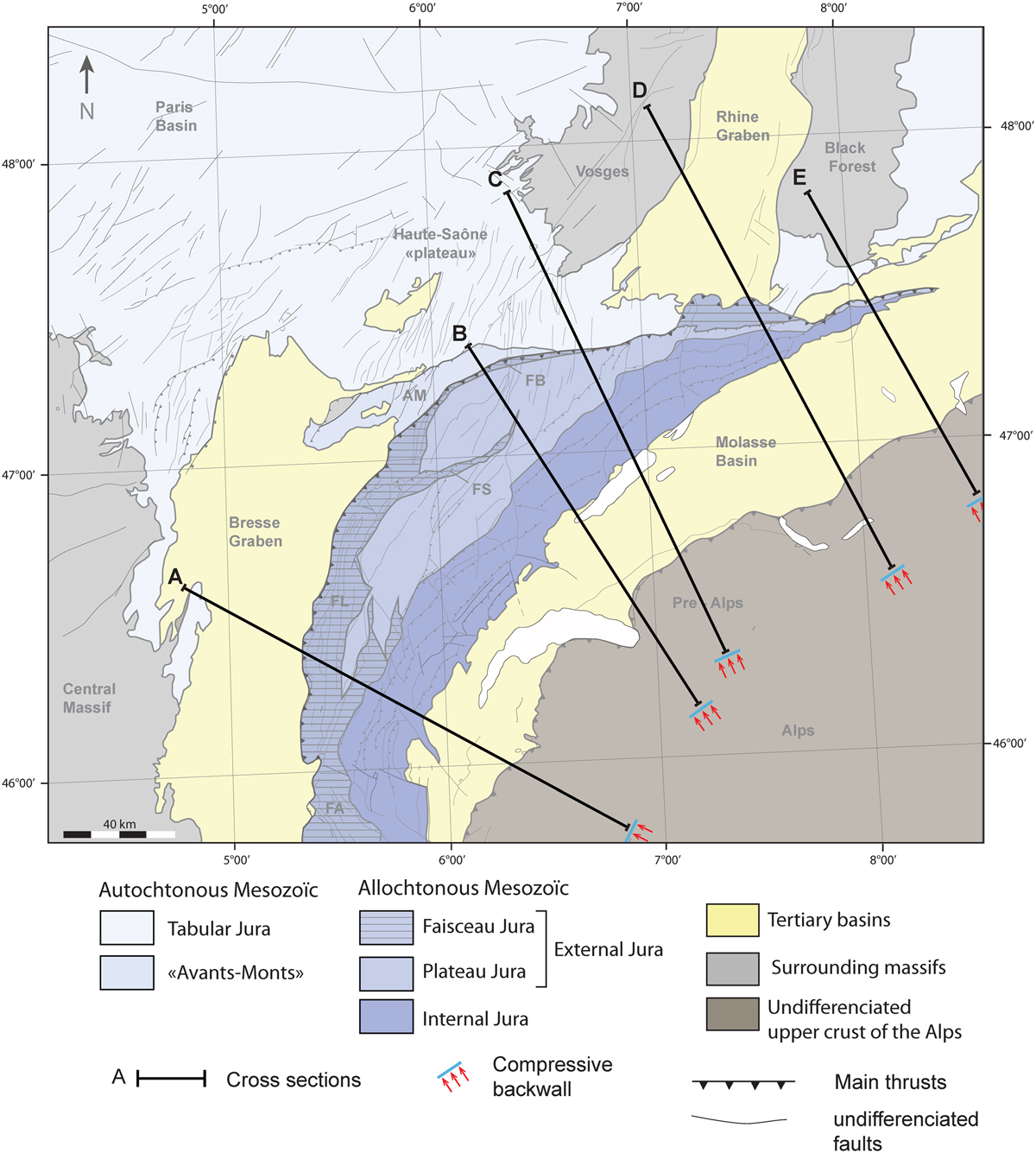

Geological map of the Jura and its surroundings and position of the five cross-sections used as prototypes in this study. The symbol with red arrows represents the compression applied in the mechanical analysis of each prototype. FB: “Faisceau Bisontin”; FS: “Faisceau Salinois”; FL: “Faisceau du Lomont”.
