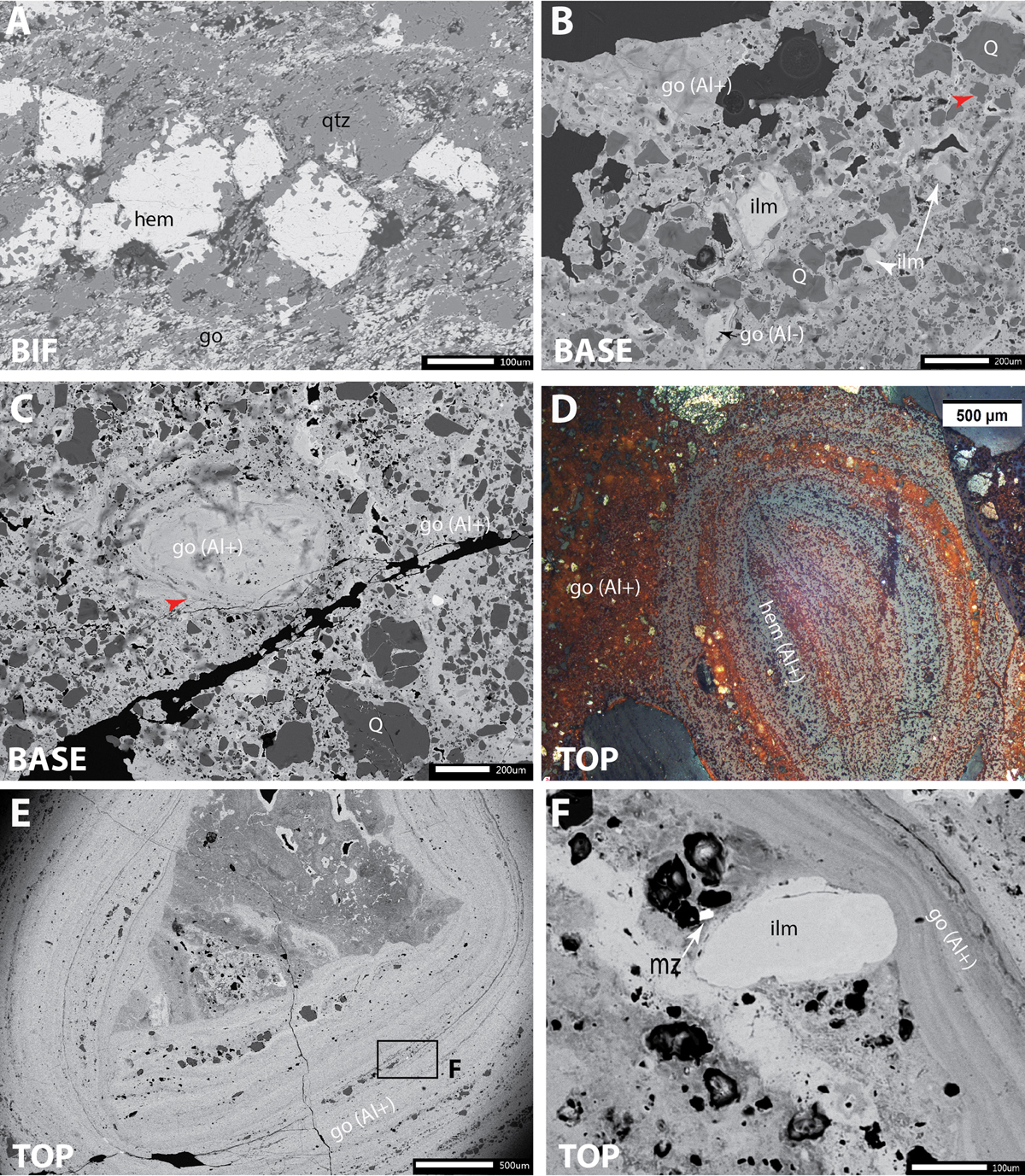

Pétrographie et textures des roches du socle et des cuirasses. A : photo MEB (BSE) des BIF de KOB. Les cristaux automorphes cubiques de magnétite ont été remplacés par de l’hématite dans une matrice de quartz jaspoïdes et de goethite ; B : faciès de base des cuirasses (ech. n° 635, MEB, BSE), de texture bréchique à clastes anguleux de quartzites montrant localement des lobes de corrosion (dissolution, e.g. flèche rouge). Des clastes d’ilménite souvent arrondis sont abondants. La goethite riche en Al (blanc grisâtre) est la principale phase cimentant les clastes. Une goethite pauvre en Al (plus claire) vient tapisser/remplir les cavités ; C : faciès de base des cuirasses (ech. n° 711, MEB, BSE), similaire à B présentant des nodules de goethite riche en Al, la flèche rouge indique l’initiation d’un rubanement du cortex ; D : faciès sommital des cuirasses (ech. n° 768, microscope optique, lumière réfléchie, nicols croisés à 70°) à pisolithes sans nucléus apparent et des enduits rubanés concentriques et discordants alternant hématite et goethite alumineuse ; E : pisolithe du sommet des cuirasses (ech. n° 664, MEB, BSE) à discordance des enduits rubanés. Ces derniers sont composés de goethite alumineuse alternant avec des microfragments de roche. Le nucléus est un claste anguleux de roche également indurée par la précipitation des enduits dans les fractures et en imprégnation de la matrice ; F : détail de E (cf. encart, MEB, BSE) montrant qu’entre les rubans des enduits pisolithiques on trouve des fractions sableuses à minéraux lourds (ilménite et monazite). Abréviations : hem. : hématite ; go. : goethite (Al+ et Al-, riche et pauvre en aluminium respectivement) ; qtz. : quartz ; Q. : quartzite ; mz. : monazite ; ilm. : ilménite.
Petrography and textures of basement rocks and iron-rich duricruts. A: SEM photo (BSE) of KOB BIFs. Cubic automorphic crystals of magnetite were replaced by hematite in a matrix of jasperoid quartz and goethite; B: base facies of the duricrusts (sample No. 635, SEM, BSE), brecciated texture with angular quartzite clasts locally showing corrosion lobes (dissolution, e.g. red arrow). Often rounded clasts of ilmenite are abundant. Al-rich goethite (greyish-white) is the main clast-cementing phase. A goethite low in Al (lighter) lines/fills the cavities; C: base facies of the duricrusts (sample No. 11, SEM, BSE), similar to B showing Al-rich goethite nodules with incipient banded coating (red arrow); D: summit facies of the duricrusts (sample No. 768, optical microscope, reflected light, nicols crossed at 70°) with pisolites without apparent nucleus and concentric and discordant banded coatings alternating hematite and aluminous goethite; E: pisolite from the top of the duricrusts (sample No. 664, SEM, BSE) with unconformity of the banded coatings. The latter are composed of aluminous goethite alternating with microfragments of rock. The nucleus is an angular clast of rock also indurated by the precipitation of the coatings in the fractures and in impregnation of the matrix; F: detail of E (see inset, SEM, BSE) showing that between the bands of pisolithic coatings there are sandy fractions with heavy minerals (ilmenite and monazite). Abbreviations: hem.: hematite; go.: goethite (Al+ and Al-, rich and poor in aluminum respectively); qtz.: quartz; Q.: quartzite; mz.: monazite; ilm.: ilmenite.
