Fig. 1
Download original image

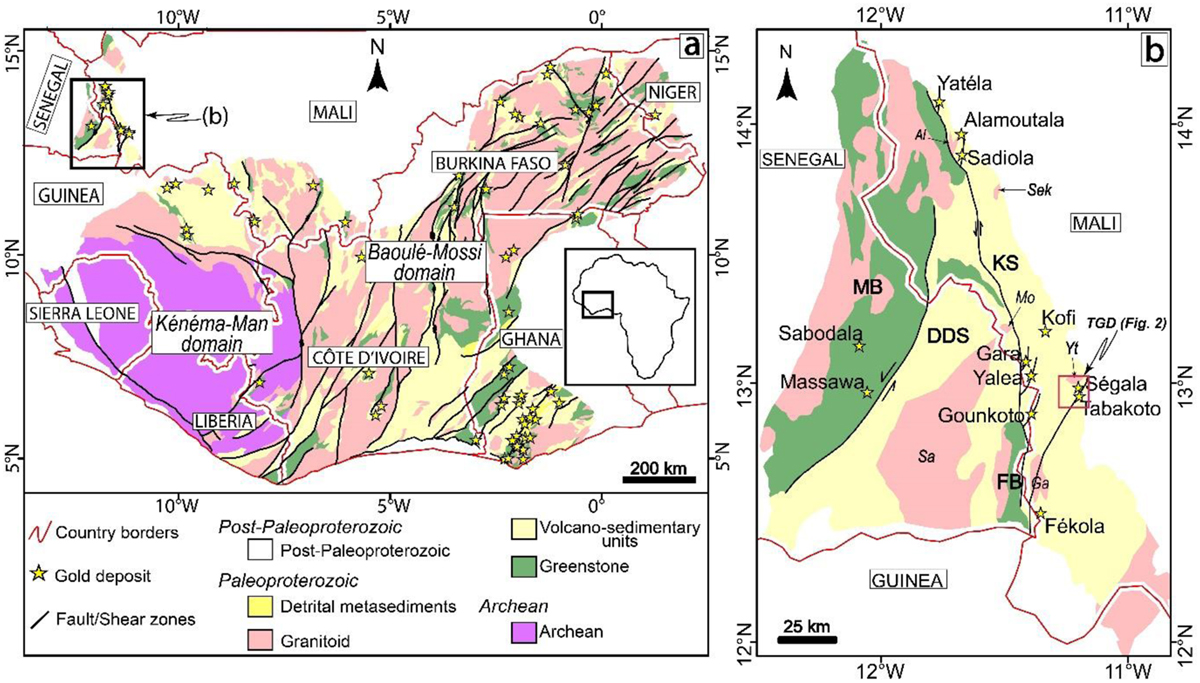

(a) Simplified geological map of the Leo-Man Shield showing the location of the most gold deposits across the WAC (modified after Thiéblemont et al., 2016). (b) Zoom of the Kédougou-Kéniéba Inlier from (a). The red box locates the Tabakoto district. Abbreviation: MB: Mako belt; DDS: Dialé-Daléma series; FB: Falémé belt; KS: Kofi series; TGD: Tabakoto gold district; Sa: Saraya pluton; Mo: Moussala granodiorite; Ga: Gamaye monzogranite; Yt: Yatea monzogranite; Sek: Sekekoto granodiorite; Al: Alamoutala granodiorite.
