Neotectonic shortening and foreland structural evolution of the Malta Horst Cenozoic carbonate succession, Central Mediterranean

Recent evolution of the Mediterranean realm: Exploring the links between deep and shallow processes in a plate convergent setting

Open Access

Fig. 2

Download original image

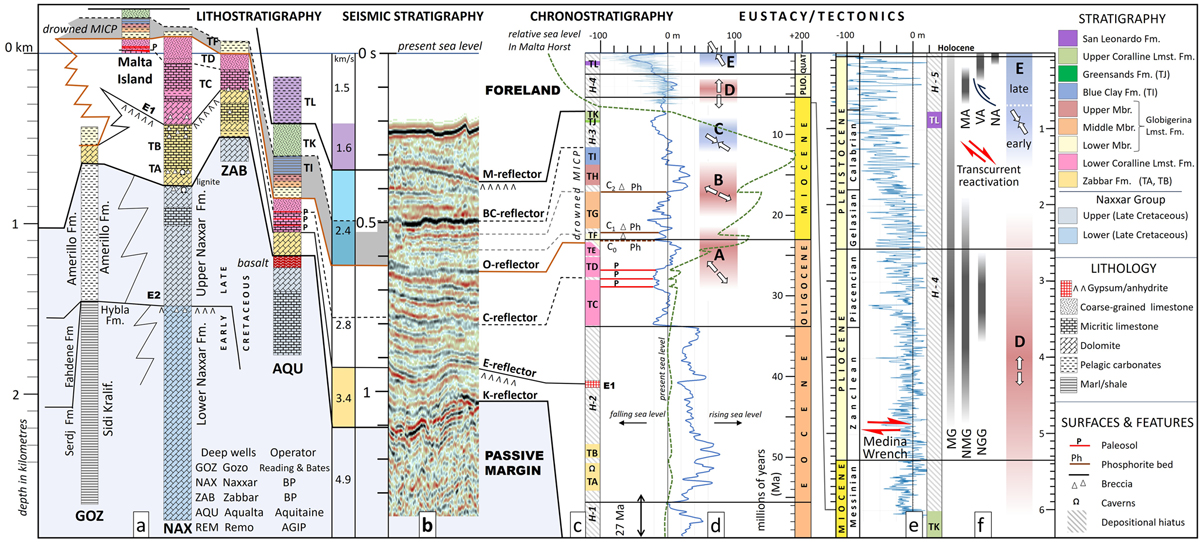

Stratigraphy of the MICP. (a) Stratigraphy of the MICP. (b) Seismic velocity and main reflectors around the AQU well. (c) Cenozoic stratigraphy of MICP. (d) Global sea level curve based on Miller et al. (2020) and tectonic phases A to E. Dotted green line shows relative sea level in Malta Horst. (e) Plio-Quaternary eustacy (Miller et al., 2005) and stratigraphy. (f) Timing of growth of Malta Graben (MG), North Malta Graben (NMG), North Gozo Graben (NGG) and Marsascala Anticline (MA), Valletta Anticline (VA), and Naxxar Anticline (NA).
