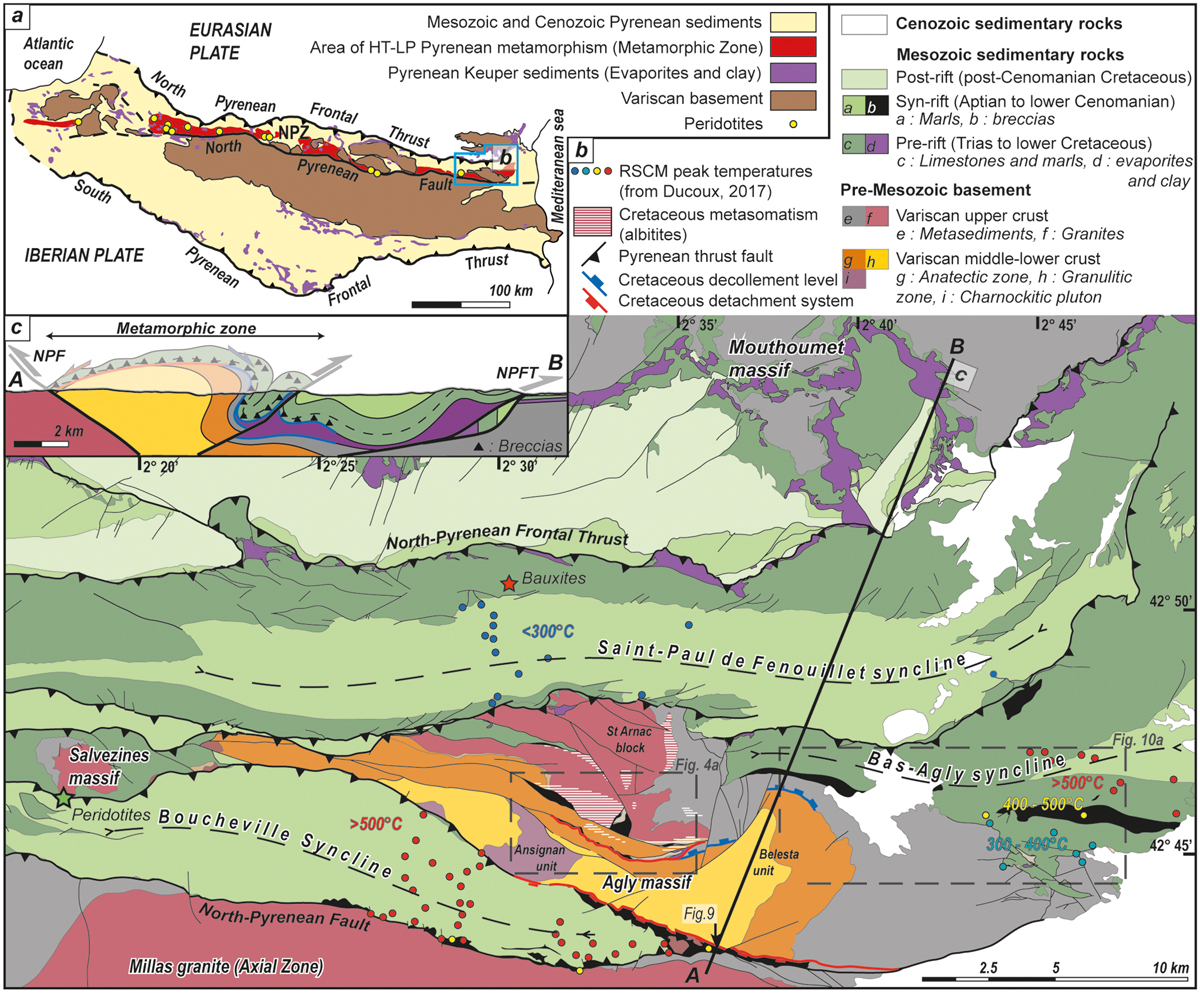

Geological map of the Agly Massif and north-eastern Pyrenees. a) Simplified geological map of the Pyrenean belt. b) Geological map of the Eastern NPZ after Fonteilles et al. (1993), Delay (1989) and our own field mapping. c) SSW-NNE cross-section of the Agly region (see location on the geological map), no vertical exaggeration.

Cartes géologiques du Massif de l’Agly et de la Zone Nord-Pyrénéenne. a) Carte simplifiée de la chaîne des Pyrénées. b) Carte géologique de la Zone Nord-Pyrénéenne orientale d’après Fonteilles et al. (1993), Delay (1989) et notre propre travail cartographique. c) Coupe orientée SSW-NNE suivant le tracé localisé sur la carte b.
